CVP031- 3 Panel Sliding

CVP031- 3 Panel Sliding

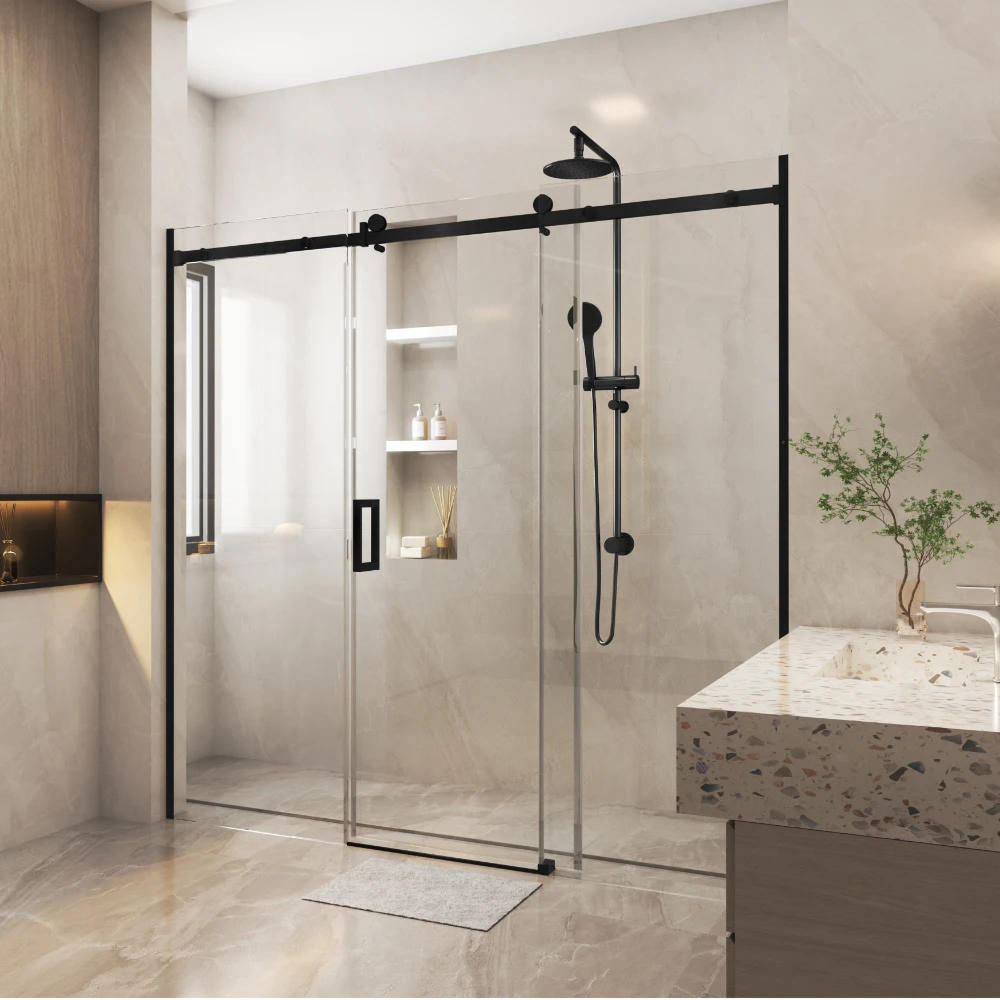

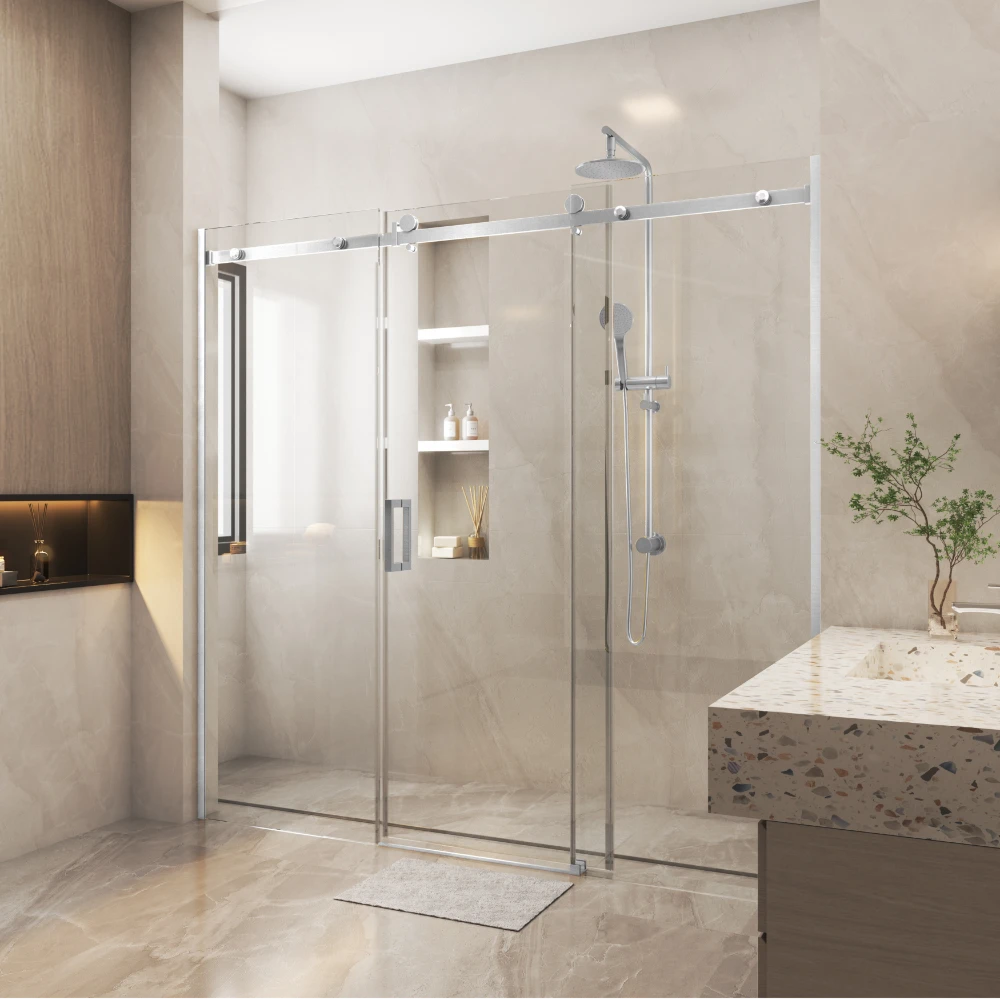

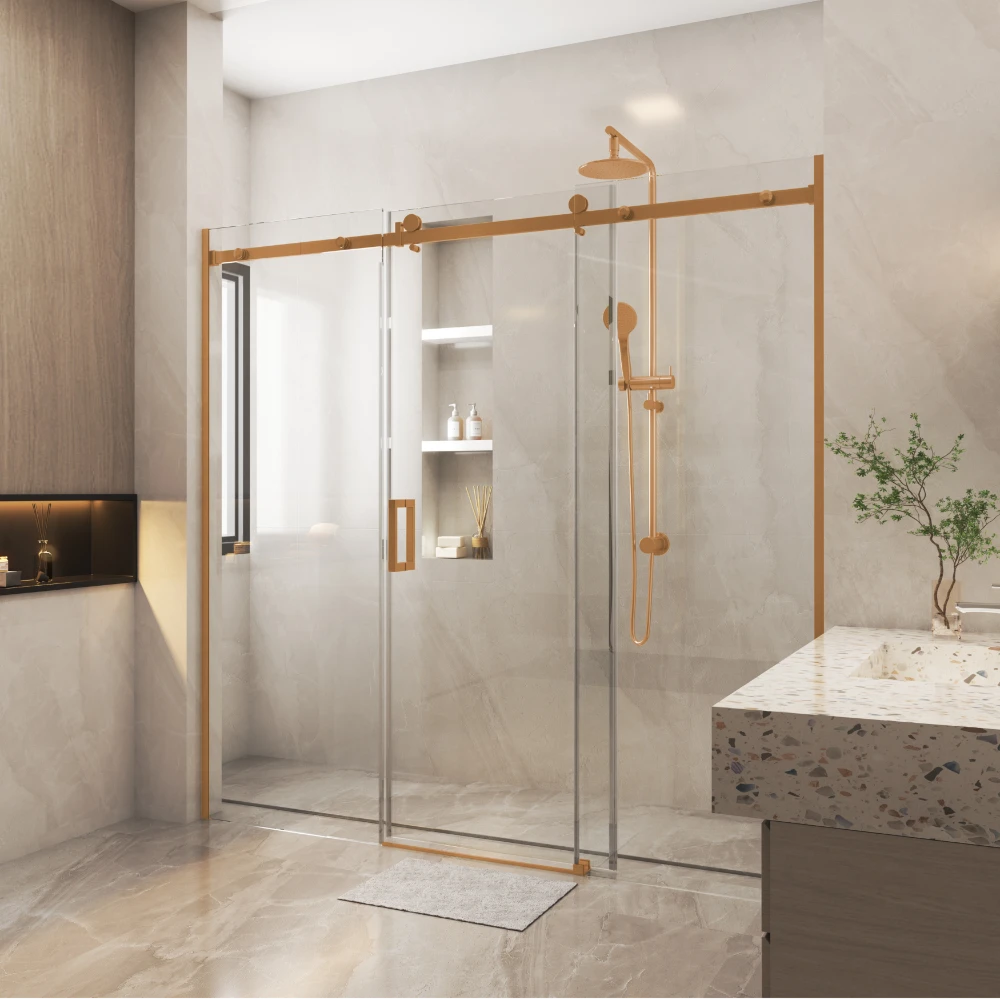

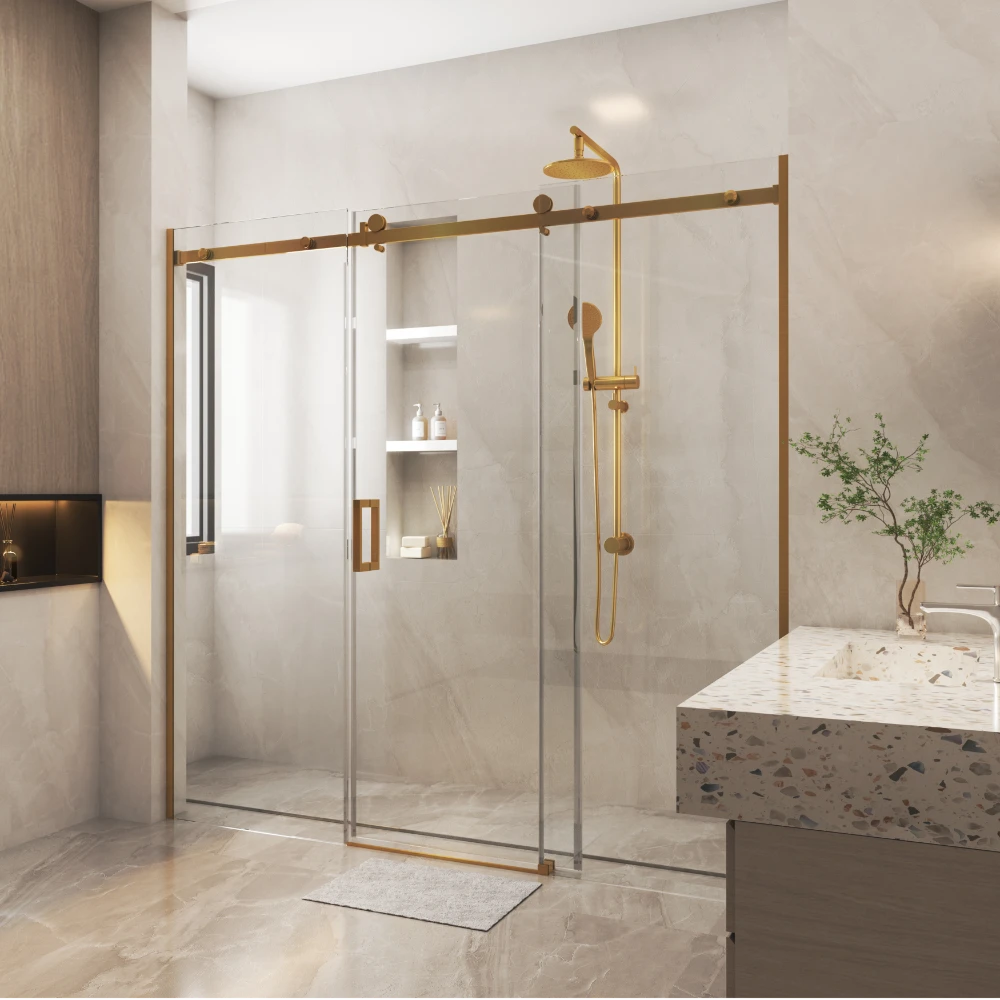

Frameless 3 Panels Single Sliding Door Australian Standard 10mm Clear Tempered Toughen Glass Shower Screen Wall to Wall Middle Entrance

$0.00
Shipping calculated at checkout.
ColorChrome
CONFIGURATION
Size
Features

– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be customized to fit different shower sizes and shapes
– Can be installed as L Shape or Wall to Wall/Inline Direction
– Normal Wall channel allows 10mm and 45mm wall channels allows 20mm for out-of-plumb wall adjustment
– Reversible installation is available

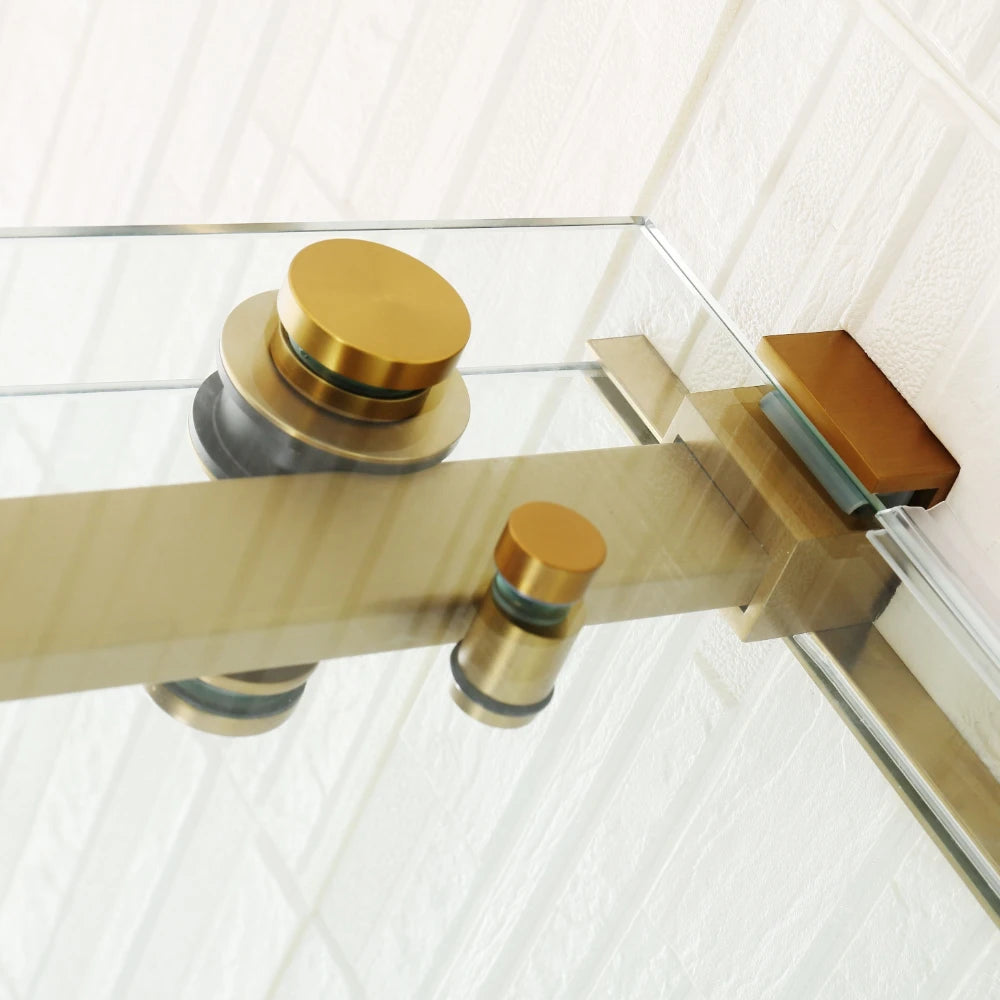

– #304 Stainless steel roller rails and special design brackets, with firm and strong rail bar, soft closing with silence.

Available Sizes

CVP031-3P
NO CONFIGURATION SKU SIZES(MM) Fixed Glass（mm） Door Glass
（mm）		 Fixed Glass（mm） Min Open Space（mm） Max Open Space（mm） REMARKS
1 Front Door
(Wall To Wall)		 CVP031W2W3P1420 1400-2000 (W2W) Provide exact measurements to supplier to check sizes conbination of each glass panel Listed glass sizes are recommended sizes for standard delivery,
if any other sizes required please check and mention requirements to supplier for different conbinations.
CVP031W2W3P2000 2000-2050 (W2W) 617mm 769mm 692mm 621mm 671mm
CVP031W2W3P2050 2050-2100 (W2W) 692mm 769mm 692mm 596mm 646mm
CVP031W2W3P2100 2100-2150 (W2W) 692mm 769mm 692mm 646mm 696mm
CVP031W2W3P2150 2150-2200 (W2W) 567mm 869mm 792mm 721mm 771mm
CVP031W2W3P2200 2200-2250 (W2W) 617mm 869mm 792mm 721mm 771mm
CVP031W2W3P2250 2250-2300 (W2W) 692mm 869mm 792mm 696mm 746mm
CVP031W2W3P2300 2300-2350 (W2W) 692mm 869mm 792mm 746mm 796mm
CVP031W2W3P2350 2350-2400 (W2W) 792mm 869mm 792mm 696mm 746mm
CVP031W2W3P2400 2400-2450 (W2W) 792mm 869mm 792mm 746mm 796mm
CVP031W2W3P2450 2450-2530 (W2W) 792mm 944mm 867mm 721mm 801mm

Customization Available

  • Do you need a Wall to Wall OR L Shape Shower screens for your bathroom?
  • Do you prefer to Frameless or Semi-frameless Shower screens for your bathroom?
  • What color of the Fittings/Frame you would like for the shower screens?
  • What kind of glass type/ pattern you would like to apply on the shower screens?
  • Do you need a Nano coating technology for your shower screens?
  • How many sets shower screens you would like to order?
  • Which suburbs or post code the bathroom located in?
  • Please enclose photos of your bathrooms and consult our dealers to get a quote.

Optional Extra Service

Nano Coating Technology
Installation Services
( NSW & Limited QLD)
Remove & Dispose Services
( NSW & Limited QLD)
